Medium Voltage Contactors
MVF Series
7.2kV Class – 400A
Motortronics™ MVF Series 7.2kV Class – 400A, Non-Latching and Latching Series of medium voltage three-phase vacuum contactors for power systems up to 7.2 kV with continuous AC operating currents up to 400A. Control voltage: AC/DC 100–125V or AC/DC 200–230V.

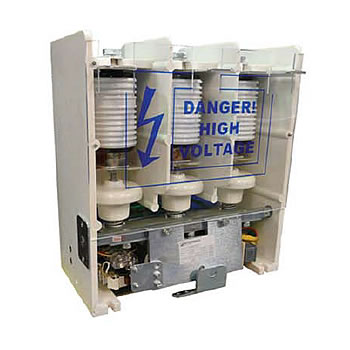

7.2kV Class – 630A and 800A
Motortronics™ MVF Series 7.2kV Class 630A and 800A, Non-Latching Series of medium voltage three-phase vacuum contactors for power systems up to 7.2 kV with continuous AC operating currents up to 800A. Non-latching, electromagnetically held contacts. Control voltage: 110–120VAC or 220–230VAC.

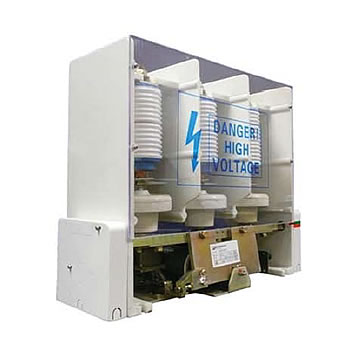

12kV Class – 400, 630 and 800A
Motortronics™ MVF Series 12kV Class 400A, 630A and 800A, Non-Latching Series of medium voltage three-phase vacuum contactors for power systems up to 12 kV with continuous AC operating currents up to 800A. Non-latching, electromagnetically held contacts. Control voltage: 110–120VAC or 220–230VAC.
MVF Series
Model Numbers
7.2kV Class – 400A
| Model Number | Rating | Type | Configuration |
|---|---|---|---|
| 34-72-4-C-X-0-3-0-12 | 400A | Non-Latching | Fixed Mount, Double Terminal without counter, non-fused, 120VAC control |
| 34-72-4-C-B-F1-0-12 | 400A | Non-Latching | Draw-out, Compartment Style, non-fused, 120VAC control |
| 34-72-4-L-X-0-3-0-12 | 400A | Latching | Fixed Mount, Double Terminal without counter, non-fused, 120VAC control |
| 34-72-4-L-B-F1-0-12 | 400A | Latching | Draw-out, Compartment Style, non-fused, 120VAC control |
7.2kV Class – 630 and 800A
| Model Number | Rating | Type | Configuration |
|---|---|---|---|
| 34-630-3-7200C | 630A | Non-Latching | Fixed Mount, Double Terminal without counter, non-fused, 120VAC control |
| 34-800-3-7200C | 800A | Non-Latching | Fixed Mount, Double Terminal without counter, non-fused, 120VAC control |
12kV Class – 400, 630 and 800A
| Model Number | Rating | Type | Configuration |
|---|---|---|---|
| 34-400-3-12000 | 400A | Non-Latching | Fixed Mount, Double Terminal without counter, non-fused, 120VAC control |
| 34-630-3-12000 | 630A | Non-Latching | Fixed Mount, Double Terminal without counter, non-fused, 120VAC control |
| 34-800-3-12000 | 800A | Non-Latching | Fixed Mount, Double Terminal without counter, non-fused, 120VAC control |
