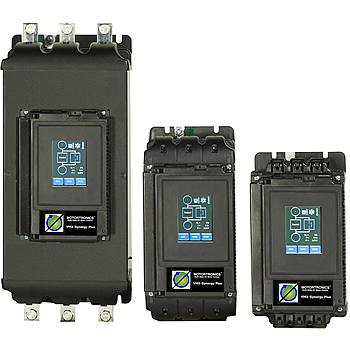

VMX-Synergy Plus™
IEC Rated Premium Digital Soft Starter
Best in Class IEC Rated Soft Starter. Internal relay bypass for the SCR, built-in application sizing for Heavy-Duty use, full data logging, field serviceable fans, upgradable firmware, and extensive I/O programmability.
| AC Supply Voltage | 200 – 600 Vac |
| HP Ratings | 4 to 500 HP |
| Amp Ratings | 17 to 500 Amps |
| Applications | 45 Profiles |
| Energy Savings | iERS System |
| Bypass | Built-in relay bypass |
| Enclosure | IP20 / NEMA 1, IP00 |
| Rating | IEC |
Color Touch Screen
All messages in 15 global languages with graphic/schematic images and active mimic diagrams.
iERS Energy Savings
Intelligent Energy Recovery System reduces energy consumption in fixed-speed applications.
Auto Configuration
Built-in app for sizing the product correctly for Heavy-Duty applications.
Auto Load Tuning
VMX-Synergy Plus™ tunes itself to the load for optimum performance.
VMX-Synergy Plus™ (IEC)
Technical Specifications
Power Components
6 SCRs in inverse parallel pairs for full phase angle soft start control
Line Voltage Range
200 to 600 VAC, 3 phase +10% / -15% on all units, 50/60 Hz
Current Ratings
17 – 500A depending on unit selection
Control Voltage
User supplied 24VDC, 110/230VAC +10% / -15% tolerance, 60 Hz
Bypass
Internal relay bypass for the SCR
Enclosure
IP00 (IP30 optional on VMX-SGY-I-17 to VMX-SGY-I-195)
Overload
Full motor overload with Memory
Programmable Trip Class 10, 20 or 30
Trip Class 10 Ie: AC-53a: 350% 17s, 5 starts/hour 90% duty
Trip Class 20 Ie: AC-53a: 400% 19s, 5 starts/hour 90% duty
Trip Class 30 Ie: AC-53a: 400% 29s, 5 starts/hour 90% duty
Short-Circuit Rating
65kA with breaker (VMX-SGY-I-48 and above)
Energy Savings
iERS – intelligent Energy Recovery System as standard
Input / Outputs
4 × programmable digital inputs
5 × programmable output relays
Analog input and output
USB for data logging and parameter setting/saving
Thermistor
Setup
Full Automatic Setup
Data Logging
Lifetime Application Event Logging Diagnostics
Comprehensive data logging
Touch Screen
3.5″ Full Color Touch Screen
Languages
Select from 15 Languages
Communication
Modbus RTU Standard
Options available for: Modbus TCP, Profibus DP, Ethernet/IP
VMX-Synergy Plus™ (IEC)
Documentation
VMX-Synergy Plus™ (IEC)
Firmware
VMX-Synergy Plus™ (IEC)
Software Tools
System Requirements
Windows 10 or higher
Intel Core i3 or equivalent
2 GB RAM minimum
100 MB disk space
